Through our highly experienced manufacturing base, we can offer our extensive uPVC
window and door range to outstanding quality, and more quickly than you might expect.
Trade Counter are supplied directly by Futuremost Windows, fabricating the Bowater Halo System 10 range of products. This versatile system is undergoing constant development and can now achieve thermal and acoustic values
previously unheard of for the price (see below).
Whether you are looking for a single uPVC door or have a regular requirement for uPVC windows, we can help.
All uPVC and aluminium windows and doors are made to your exact dimensions and specifications, and there's a surveying service if required.
All of our uPVC windows and doors are availible in a range of foiled finishes or colours.
We even have a
dual architecturally approved powder coating division and wet spray shop, that can spray uPVC to any colour! The paint used has a 10 year warranty against flaking as it chemically etches itself
to the surface of the plastic.
System 10 is a fully versatile and totally integrated 70mm system with kerb appeal that features a chamfered
edge with clean and slim sightlines. It has the added advantage of full compatibility with the Rustique ‘ovolo’
shape system, so you can mix and match between the two.
With a choice of suited single leg beading options to match,
which are quick, secure and easy to install on site, and a whole host of other innovative features designed to save you on
fitting time – System 10 is designed to perform.

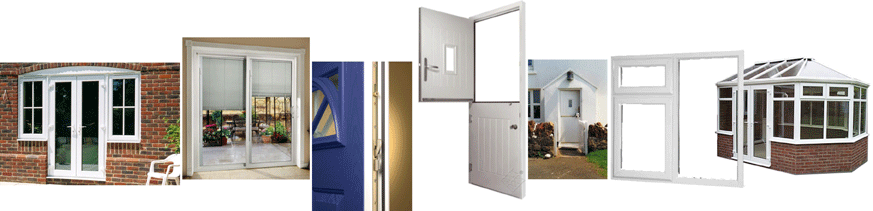

System 10 offers a comprehensive range of window and door styles
for the trade, retail, commercial or the new build installer to offer consumers and clients. System 10 can now also offer
the SmartSash range of profiles, to further extend thermal and acoustic performance.
- 70mm profile
Profile measures 70mm front to back, to ensure a direct replacement with timber
windows with minimal trimming or finishing.
- Choice of bead and glazing options
to accept 24mm, 28mm 32mm and 36mm sealed units. The profiles can be fitted with a choice of chamfered or ‘ovolo’
shaped features. A secondary weather seal on the beading gives an improved performance.
Compatible with our thermal insert (patent applied for) sleeve to achieve a WER A rating with a double
glazed unit when applied to the outerframe reinforcement chamber.
- Product applications
System 10 range allows us to manufacture casement windows, french and tilt and turn windows, residential doors,
inline patio doors and bi-fold doors within the same trusted product.
- Material specification
All System profiles are manufactured from acrylic high impact modified, Polyvinyl Chloride unplasticised compound (PVCu).
Five fully enclosed chambers with an increased wall thickness offer additional product strength, rigidity
and performance in addition to improved thermal efficiency.
- Reinforcement chamber
chamber enables galvanised steel reinforcement to be used for greater strength and rigidity.
leg bead for quick and easy glazing
Our single leg beading has a simple ‘knock-in’ design that is fitter
friendly and will make glazing on site quick, easy and more positive. The single leg bead provides a performance to BS7950
Security enhancement standards.
- PCE gasket
Our PCE low level gasket allows quicker fabrication
and installation. The heat bonded gasket means that there is no shrinkage or any risk of the incorrect gasket being fitted.
It gives a consistency in quality and finish, which reduces any hard lumps in corners and overcomes any stretching problems.
It features a new weather seal flipper and 3.0mm glazing pad for an improved seal.
- Low level
Our PCE gaskets are low level, which means they are designed to fit in with the profile so that the maximum glass
area is made visible with no unsightly gasket lines.
A wider drainage channel
allows for a quick draining of any water/ residue built up for an improved performance.
hat fixings and screw ports
Hardware and striker keeps are screwed into top hat fixing points and screw ports for an
improved technical and enhanced security performance.
- 10mm overlap
A 10mm overlap as standard
gives an increased weather performance.

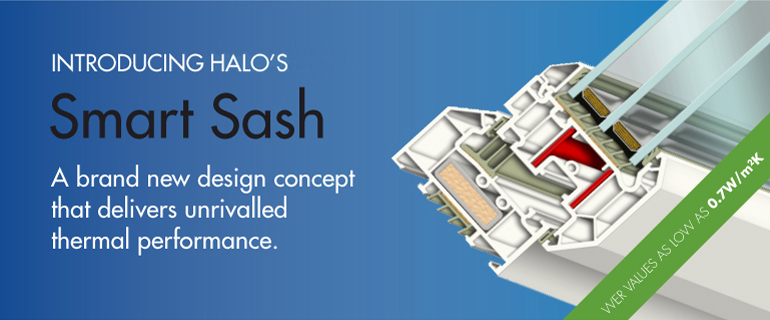

System 10: SmartSash – how low can 'U' go?
SmartSash PVC-U windows and doors
can be manufactured with a U-value as low as 0.7W/m2K. This remarkable performance is achieved using a standard 70mm outer
frame depth and “off the shelf” glazing, hardware and other components.
SmartSash is undoubtedly one of
the most significant developments in window design this century.
No other UK based PVC-U systems manufacturer is able
to offer such exceptional thermal performance using standard components.
No other European PVC-U systems manufacturer
is able to offer an equivalent thermal performance using a standard 70mm outerframe.
SmartSash is a development of Halo’s
market leading System10 PVC-U windows and doors. System10 has been used to great success for over 25 years and is held in
high regard by Local Authorities, construction professionals and homeowners alike.
Sound reduction too.
with the remarkable thermal insulation performance comes a commensurate reduction in sound transmission. Reductions of up
to 50db can be achieved.
