Aluminium Windows & Doors

We offer a comprehensive range of Aluminium window and door products using the Smarts Architectural and Reynaers Aluminium profile systems. The possibilities are quite literally endless!

The best way to get to get exactly what you want and require is to call us and have chat. Warren and Jason can advise you on what you need if you're not sure, and advise on what product would be most suitable when you do.

Smarts Architectural - Alitherm 300/600/800/700

Aluminium Casement windows and parallel windows which achieve Windows Energy Rating (WER) "A" grade

The Alitherm series of windows offer a range of high quality glazing solutions for side hung, top hung open out and parallel opening casements, suitable for both the residential and commercial markets.
This versatile range of profiles can provide many solutions such as traditional casement windows inspired by the elegance and styling of timber products, or automatic parallel opening commercial windows designed to provide a balanced airflow in multi-storey commercial buildings.
All Alitherm profiles utilise Smart’s innovative polyamide thermal break technology which creates a barrier between the cold air outside and the warm air inside. This technology significantly reduces thermal transmittance and enhances the overall U Value of a product.

  • WER rating A
  • Building regulation s document L compliant
  • 70mm or 60mm frame depth
  • All general and light use applications

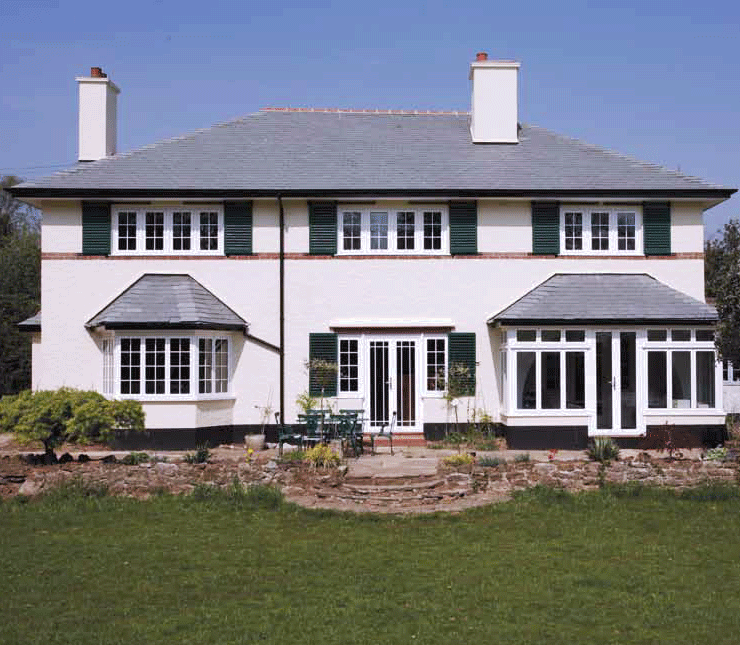

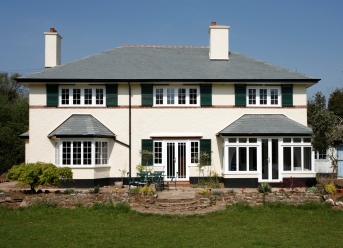

Alitherm Windows and doors

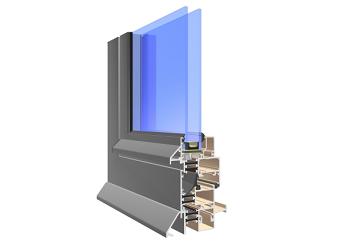

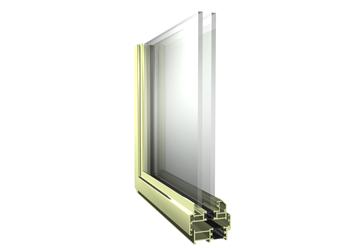

Alitherm Series corner sample

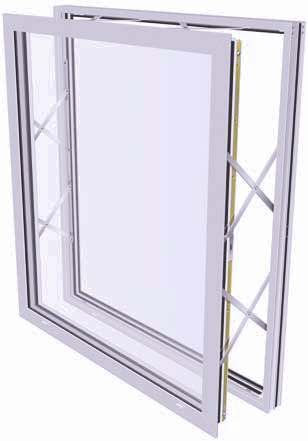

Alitherm 700 Parallel window

Smarts Architectural - Alitherm Plus Door
Heavy residential/Light commercial door
The latest addition to the successful Alitherm range of domestic doors & windows, the Alitherm Plus Door is suitable for all residential light commercial applications such as entrance doors to apartment buildings.

Alitherm Plus door
Alitherm Plus door
Alitherm Plus door

Reynaers Aluminium - CS 77
High specification and performance window and door system
CS 77 is a thermally improved three-chamber system for windows and doors that boasts the optimum combination of safety and comfort. Fibreglass reinforced polyamide strips with ribs and/or hollow chambers guarantee high thermal insulation levels.

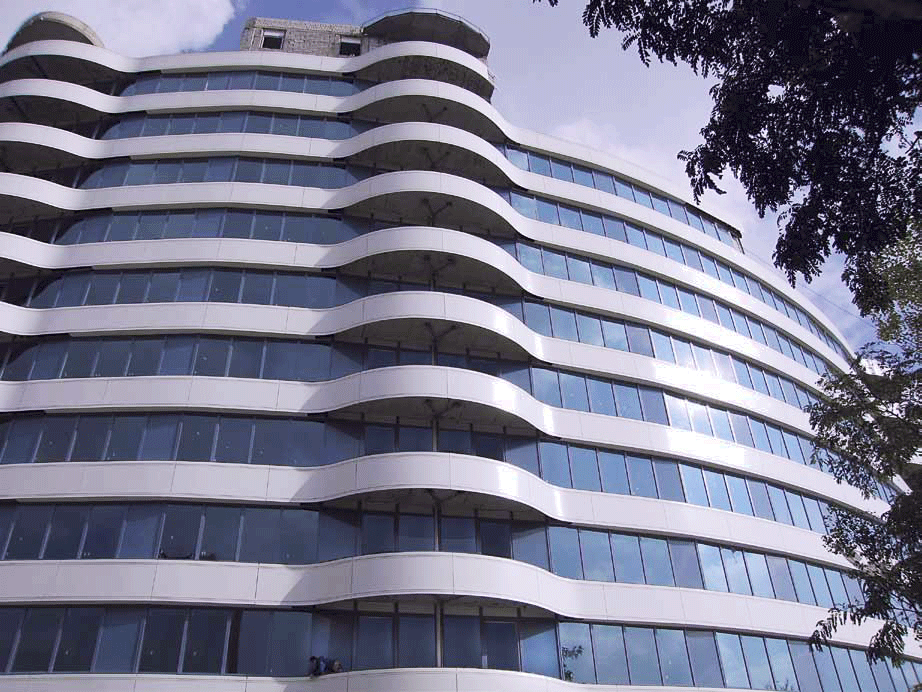

Reynaers CS77 windows and doors

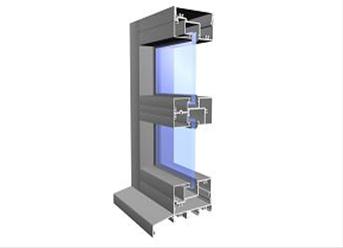

CS77 end-on

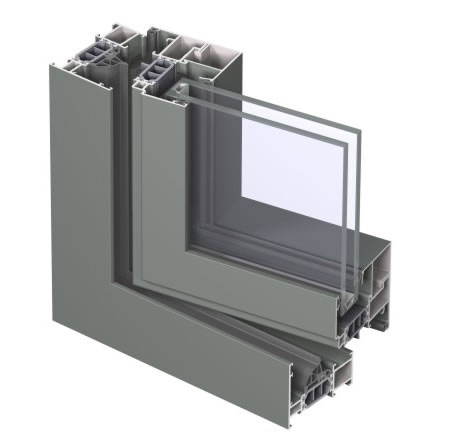

CS77 corner

Smarts Architectural - Evolution
Evolution is designed to offer a modern aluminium thermally broken replacement to steel windows.

Taking inspiration from traditional steel windows, Evolution features signature slim sightlines and attractive aesthetic contours coupled with polyamide thermal break technology giving Evolution enhanced thermal performance and maximised sightlines.

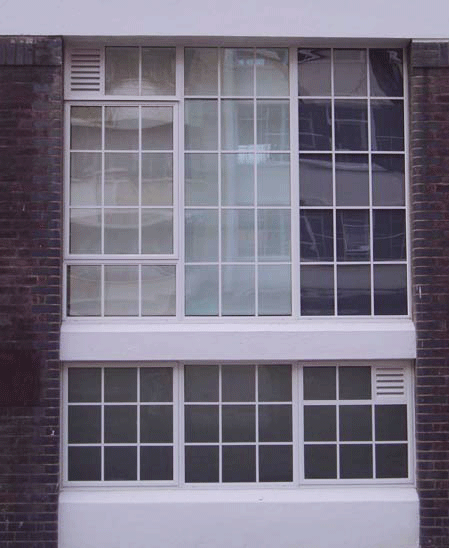

Evolution slimline windows

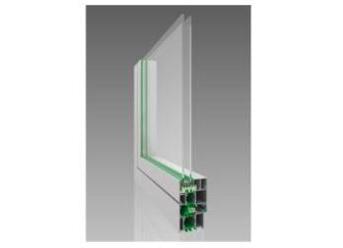

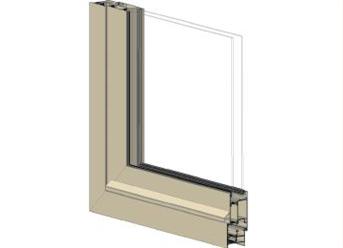

Evolution corner sample

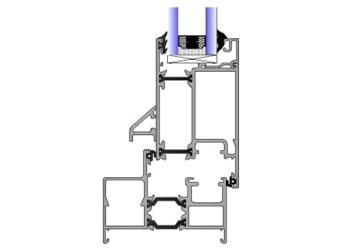

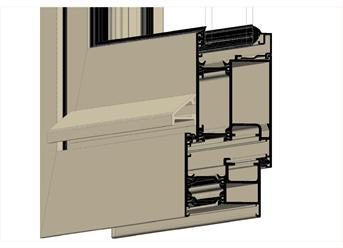

Evolution cross section

Reynaers Aluminium - CS 104
High specification, high quality, high performance solution for passive construction.
With the CS 104 window and door system, Reynaers achieves unparalleled insulation values for aluminium profiles in the building industry, introducing a solution for passive buildings. The high insulation levels, down to an Uf-value of 0.88 W/m²K, are achieved by the use of a patented insulation technology which contains a special foam, firmly fixed in the chamber of the insulation strip so that no extra manipulation is required when handling, processing and composing the window and door. A new set of specifically developed gaskets also assures the high level of the wind and water tightness of the system. After insulation, air tightness is the most important factor determining the energy efficiency of a window or door.


In addition to the high insulation values, CS 104 offers extremely high performance when it comes to water tightness. With values up to 900 Pa for windows and 300 Pa for doors, the system is suitable for extreme conditions such as coastal areas, and can be applied at extreme heights. The increased built-in depth of the profiles (the vent is 104mm deep) contributes furthermore to their strength and stability. This gives architects and builders the design benefits of large, expansive surfaces of triple glazing resulting in innovative, energy-efficient and yet sustainable solutions.

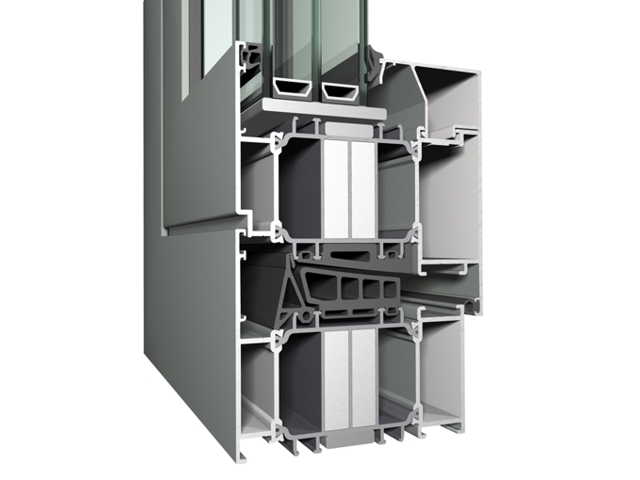

CS104-detail1

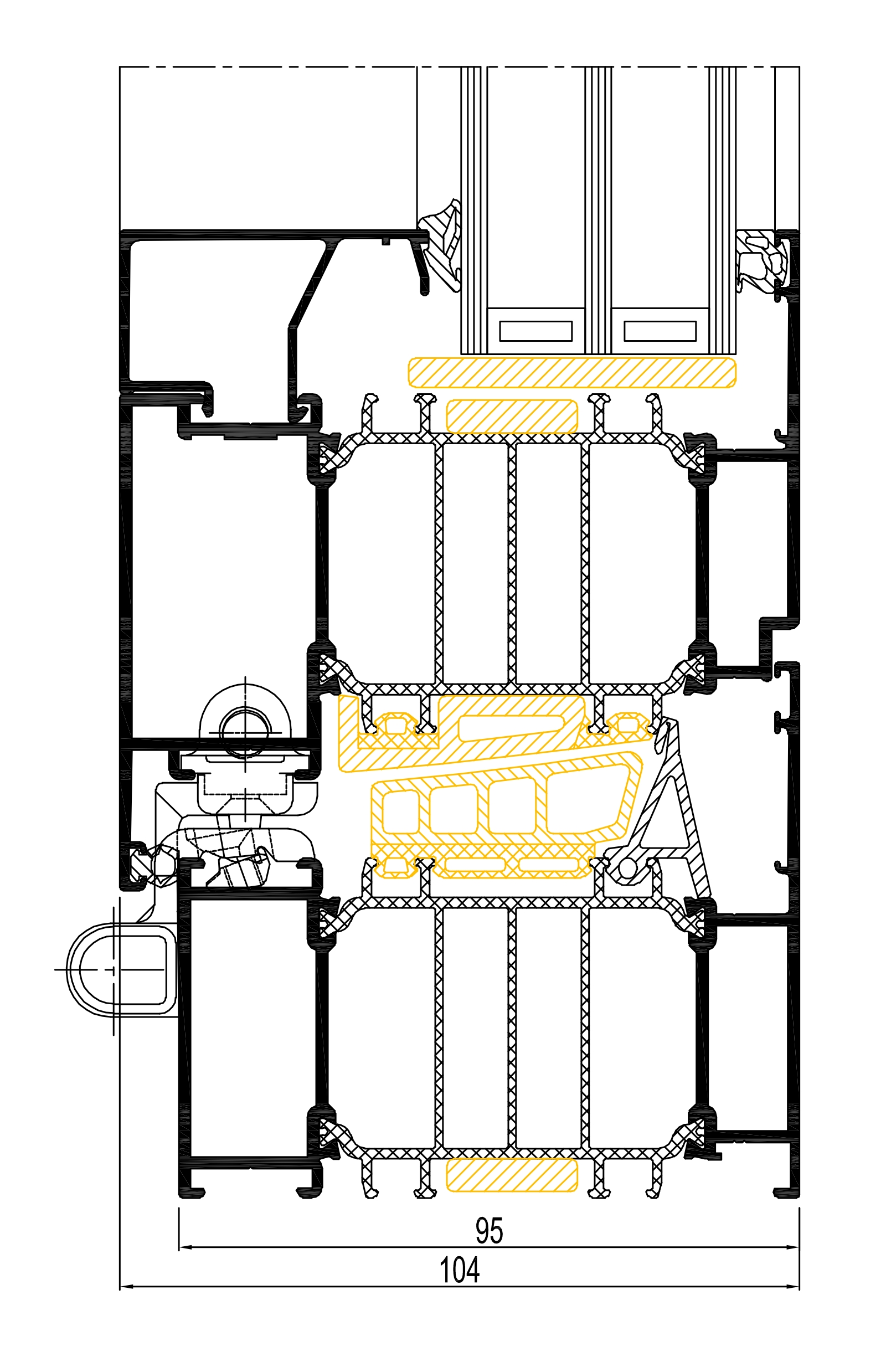

CS104 detail 2D

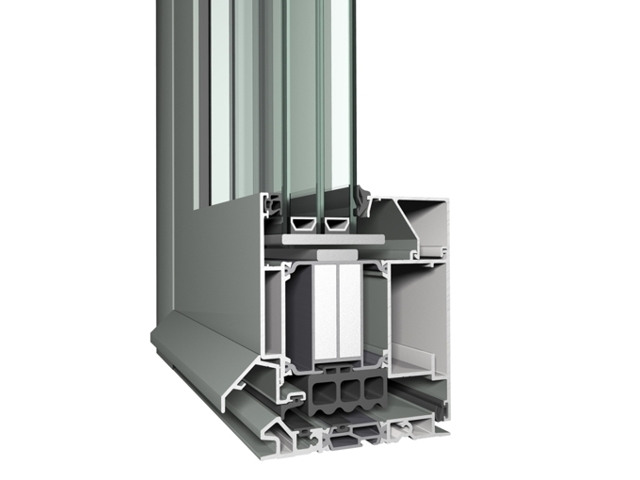

CS104 detail 2

Smarts Architectural - Eco-Futural
Commercial windows and doors designed for optimum thermal and weather performance.

Designed to comply with revisions to Document L in 2010. All sections feature Polyamide thermal barriers and are contemporarily styled with square edge profiles. Successfully weather tested to BS 6375 Part 1.

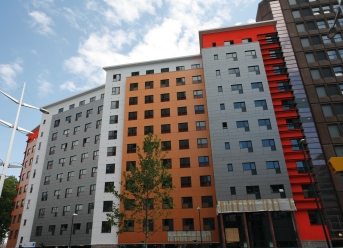

Eco Futural Visoline
Visoline corner
Eco Futural corner sample

Smarts Architectural - Shopline
Heavy duty, non-thermal, internally beaded door system

Hung on face applied hinges or concealed swing mounted. Options for all around rebate or a rebate stop or with flat faced or anti-finger trap hanging stile with single or dual swing option. Suitable for all commercial door areas including those rated Severe Duty.

Shopline door
